Car Passenger Positions
The recommended car passenger position (green, see (b) Car passenger position – recommended position [93]) should be used in the vehicle if possible. If your current seat position does not correspond to the recommended car passenger position, the car passenger mode icon and the LED ring light up in yellow (see (c) Car passenger position [93]) instead of in green to alert you to the increased risk due to the wheelchair’s sub-optimal position..
If you are unable to get into the recommended position (e.g. due to obstructions in the vehicle) the transition can be cancelled prematurely by selecting the car passenger mode icon. Always try to get as close as possible to the recommended car passenger position.
You can also adjust the seat position as described in Adjusting the Seat Motors Via the Control Panel. As soon as you change the position of the back support, foot support or the seat angle of the wheelchair, the display will change to yellow (adjusted position) instead of green.
 (a) Car passenger boarding mode |  (b) Car passenger position - recommended position |  (c) Car passenger position - adjusted position |
Do not change seat settings when belts are fastened
As the vehicle’s belts are fastened underneath the seat, you should not adjust the seat once the belts are already fastened to the BRO and set to restrain it. You may otherwise get stuck and cause damage to the wheelchair or vehicle.
Adjusted Position in Car Passenger Mode
In car passenger mode, it is possible to adjust the sitting position. As soon as you change the position of the back support, the foot supports, the seat or the seat angle of the wheelchair, the color of the control panel changes from green to yellow (adjusted position).

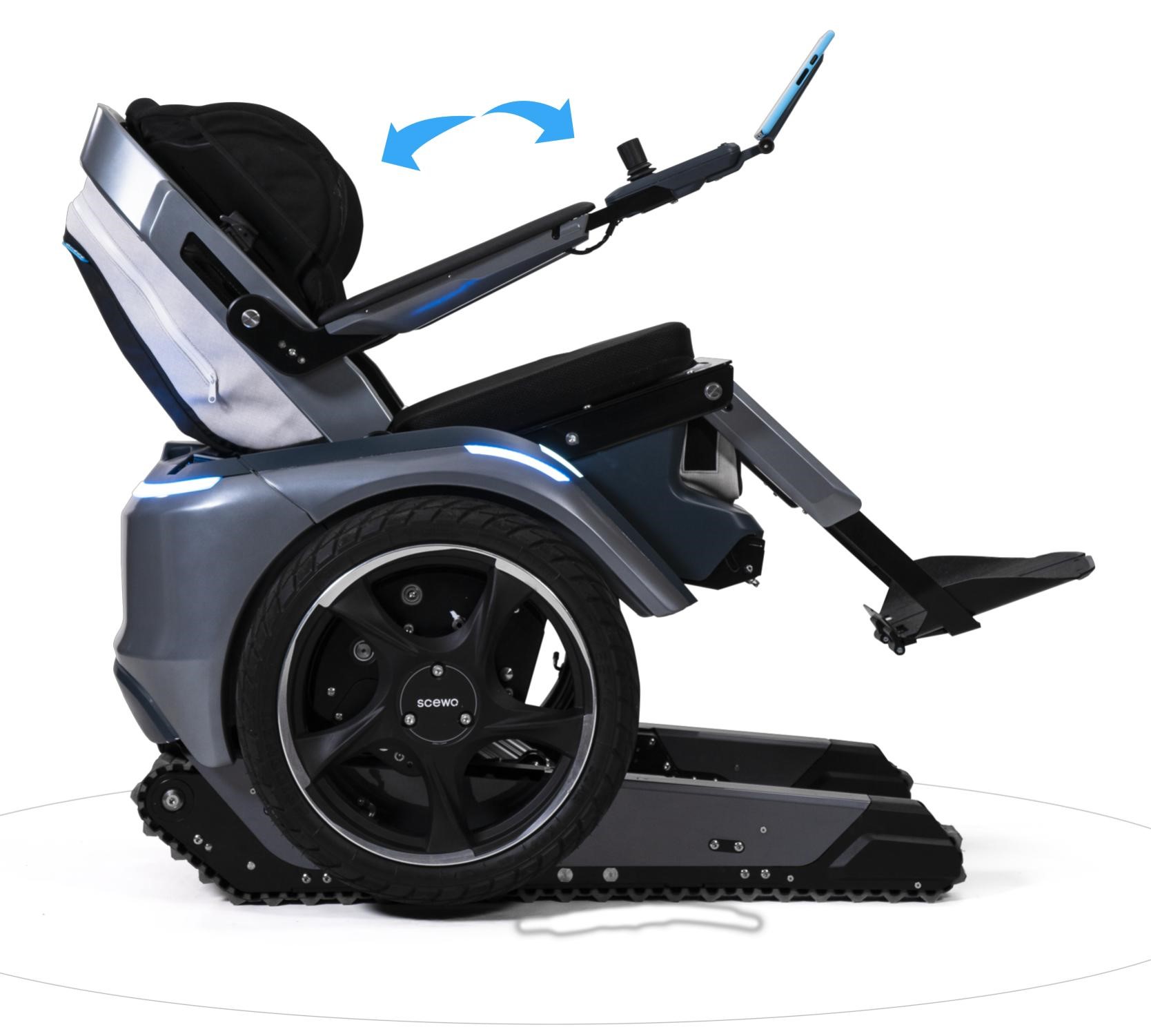

In addition to the three seat motors (back support, seat lift, foot support), you can adjust the seat angle via the control panel. Please note that this is not possible via the app. By adjusting the seat angle, you can tilt the entire seat, including all segments, forward or backward .
 |
To adjust one seat motor with the control panel, proceed as follows:
Press and hold the menu button for approx. 2 seconds → Seat menu will appear
Move the joystick to the left left or right to select the desired seat motor:
Back support: the far-left segment
Seat lift: the middle-left segment
Foot support: the middle-right segment
Seat angle (can only be adjusted via the control panel): the far-right segment
Push or pull the joystick forwards or backwards to adjust the desired seat motor
Press the menu button again to exit the seat menu.
A detailed guide to seat adjustments using the control panel, including a video, can also be found in the section Adjusting the Seat Motors Via the Control Panel.

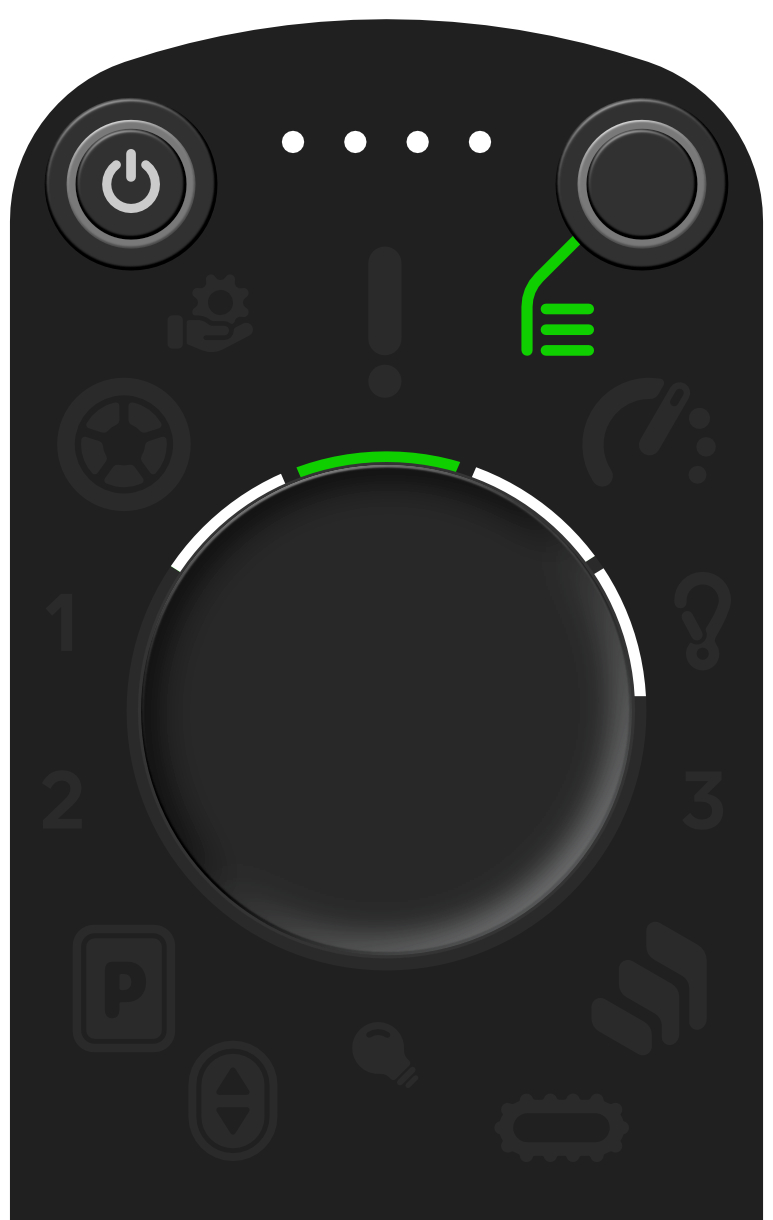

(a) Adjustment of the back support |
(b) Adjustment of the seat lift |

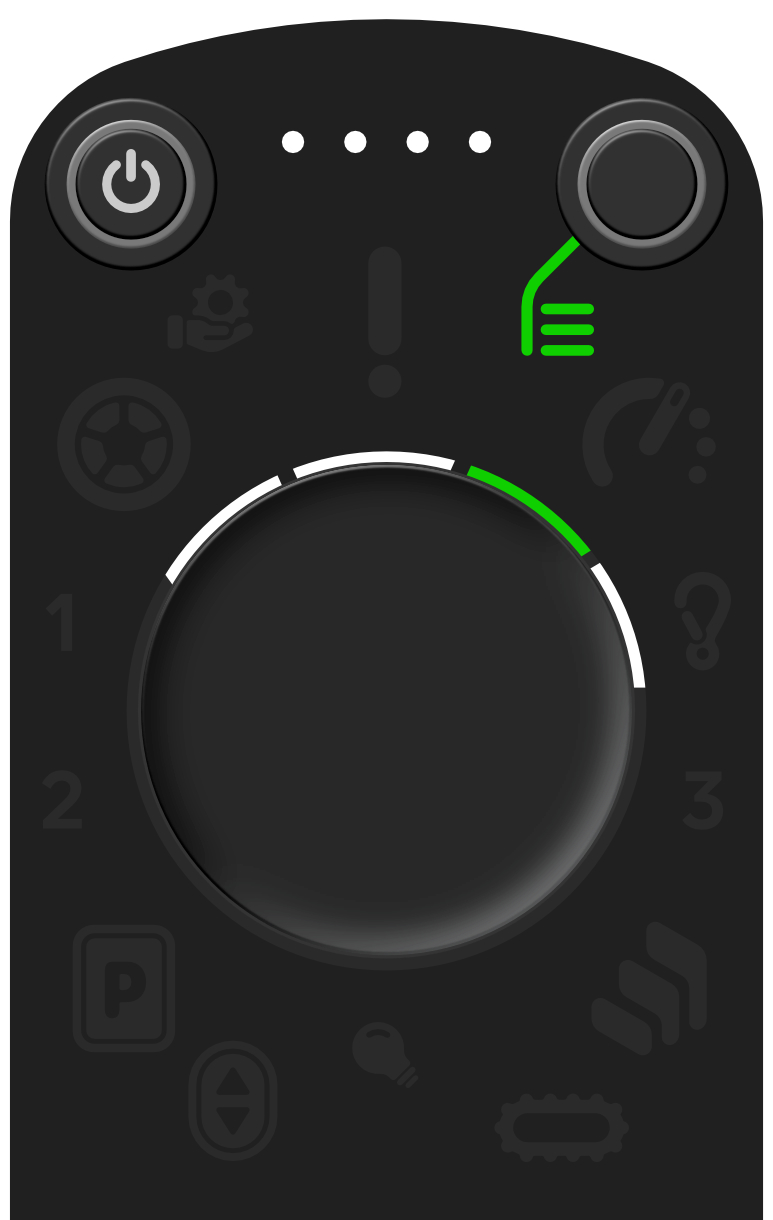

(c) Adjustment of the foot support |

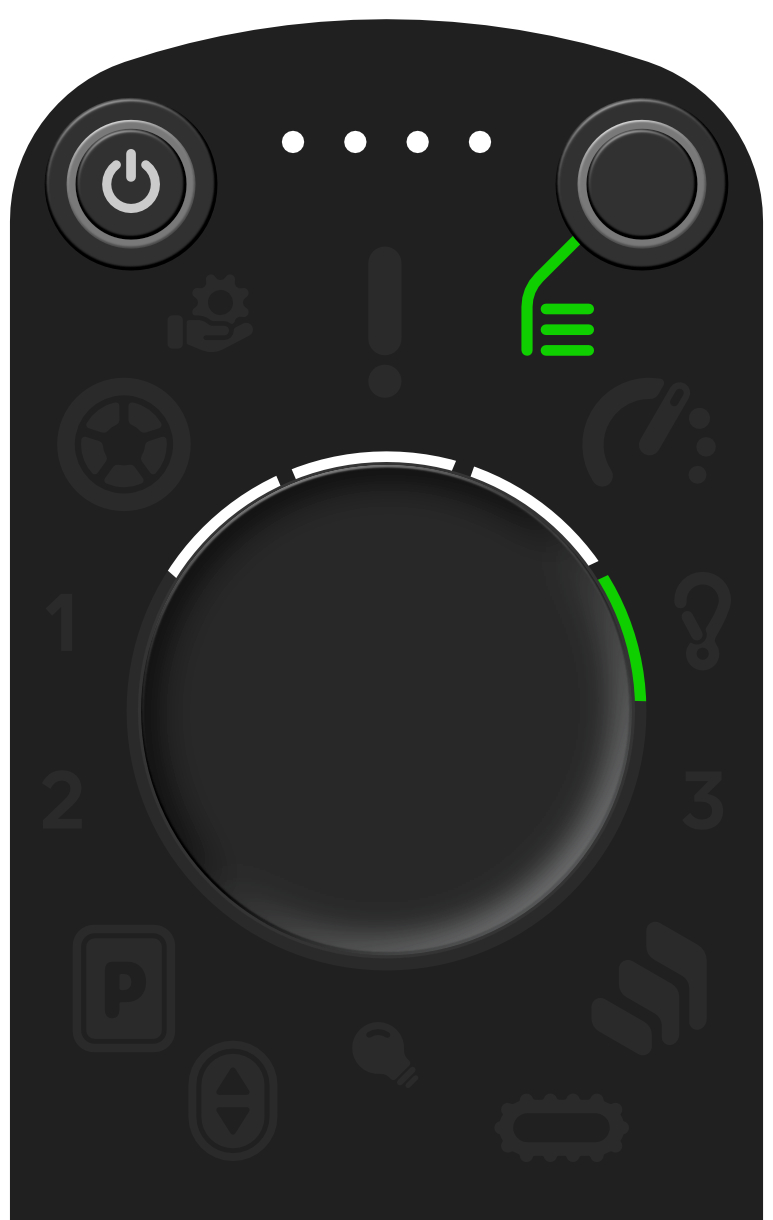

(d) Adjustment of the seat angle |
Instructions for adjusting the various seat motors using the app can be found in the section Adjusted position in ridesharing mode with the app.
Adjusted position in car passenger mode
To adjust the seat motors with the app, proceed as follows:
Navigate to the menu bar and select "Seat Settings" in the app.
Tap on the component you want to adjust.
Use the lower buttons (arrows) to move the individual segments up or down.

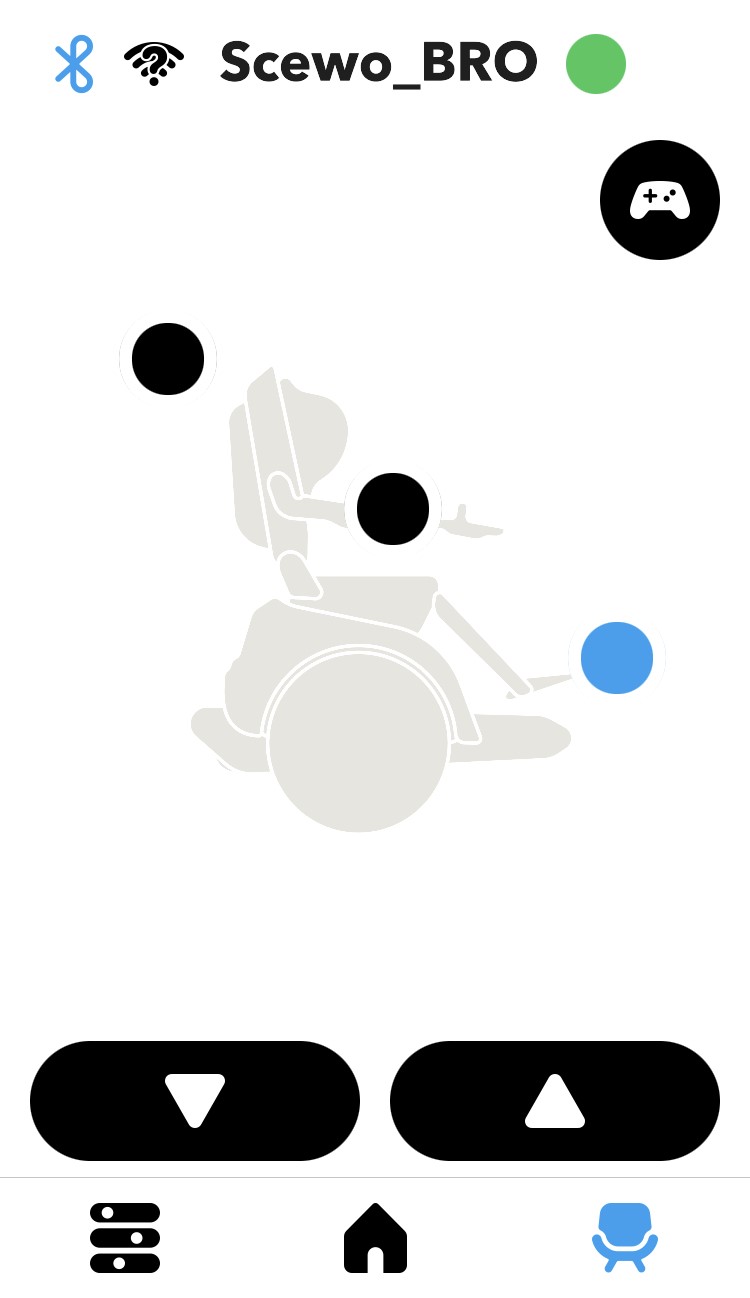

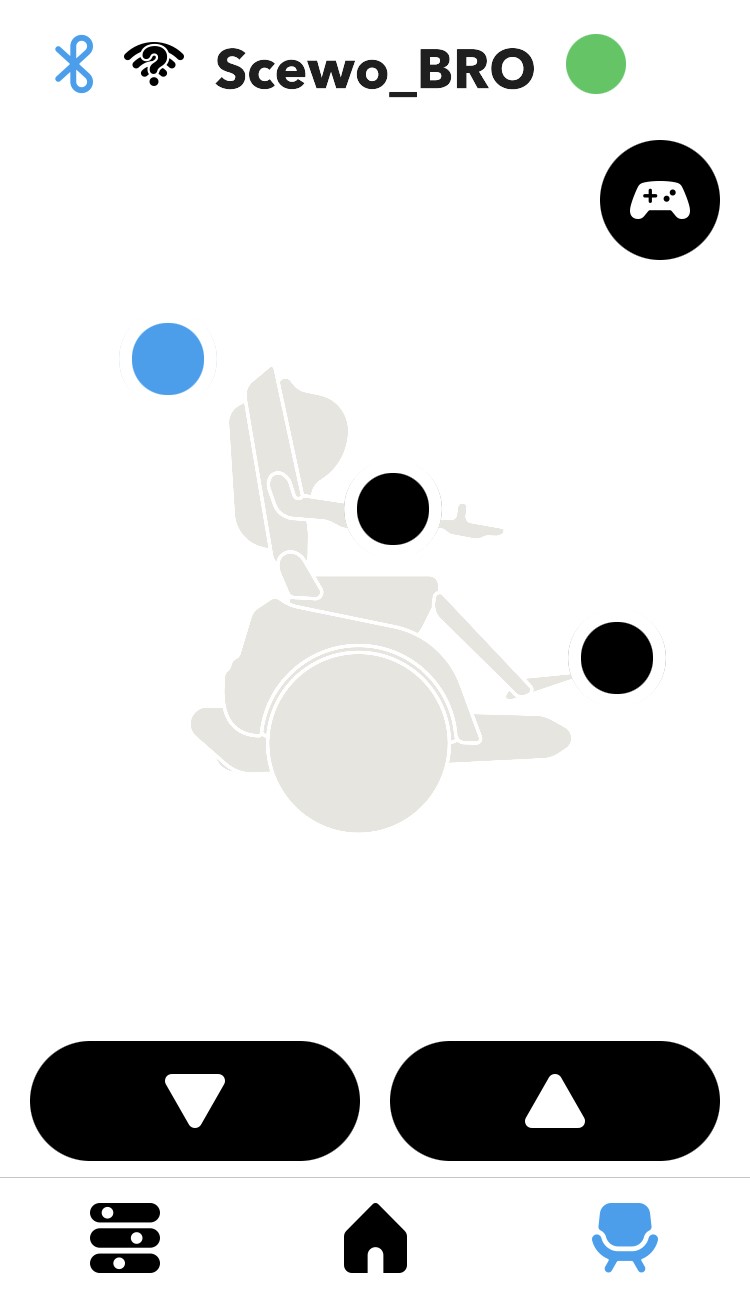

(a) Adjustment of the back support |

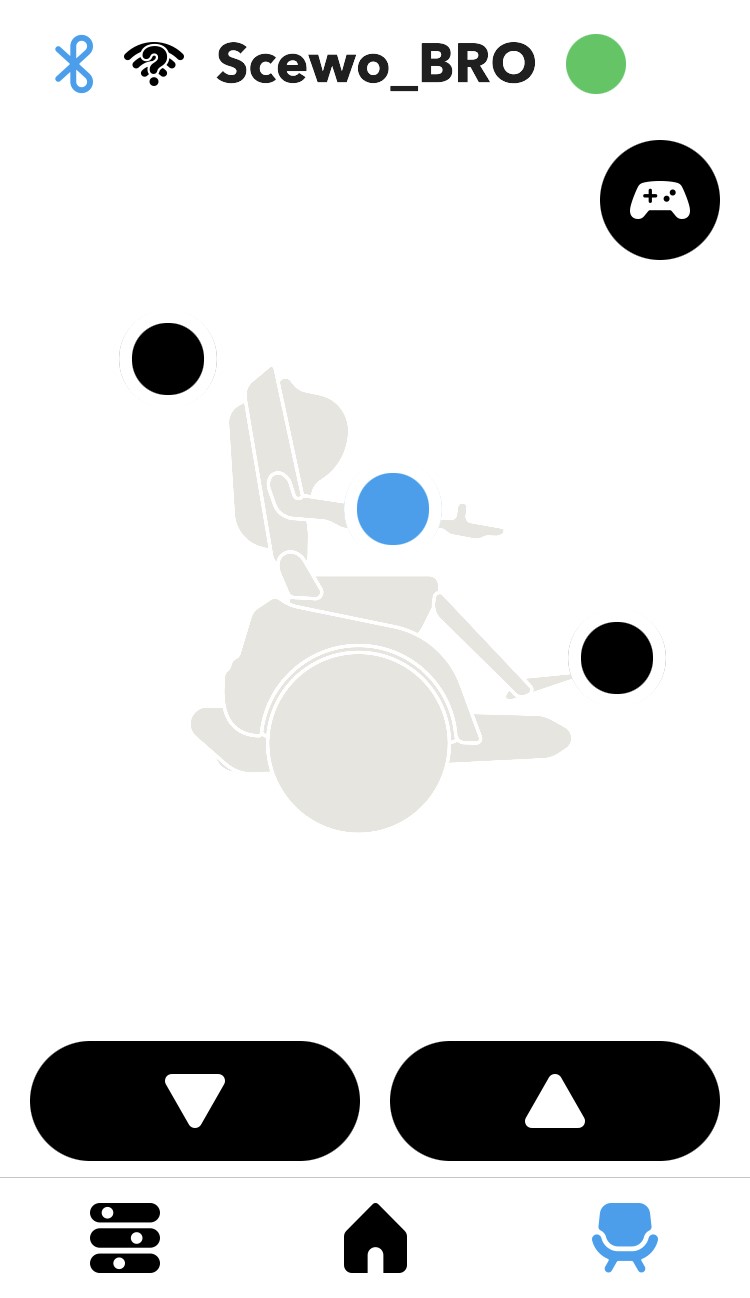

(b) Adjustment of the seat lift |
(c) Adjustment of the foot supports |
In addition to the three seat motors (back support, seat lift, foot support), you can adjust the seat angle on the control panel. This is not possible on the app. By adjusting the seat angle, you can tilt the entire seat with all segments forward or backward. In the section Adjusted position in ridesharing mode with the control panel you can find the instructions for this.
